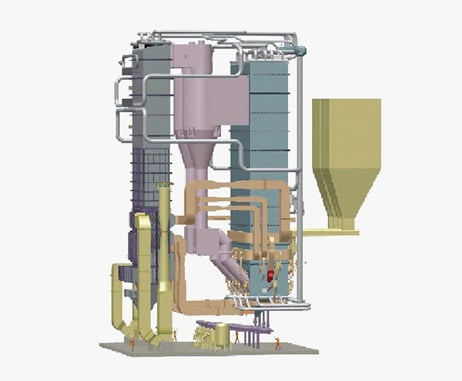

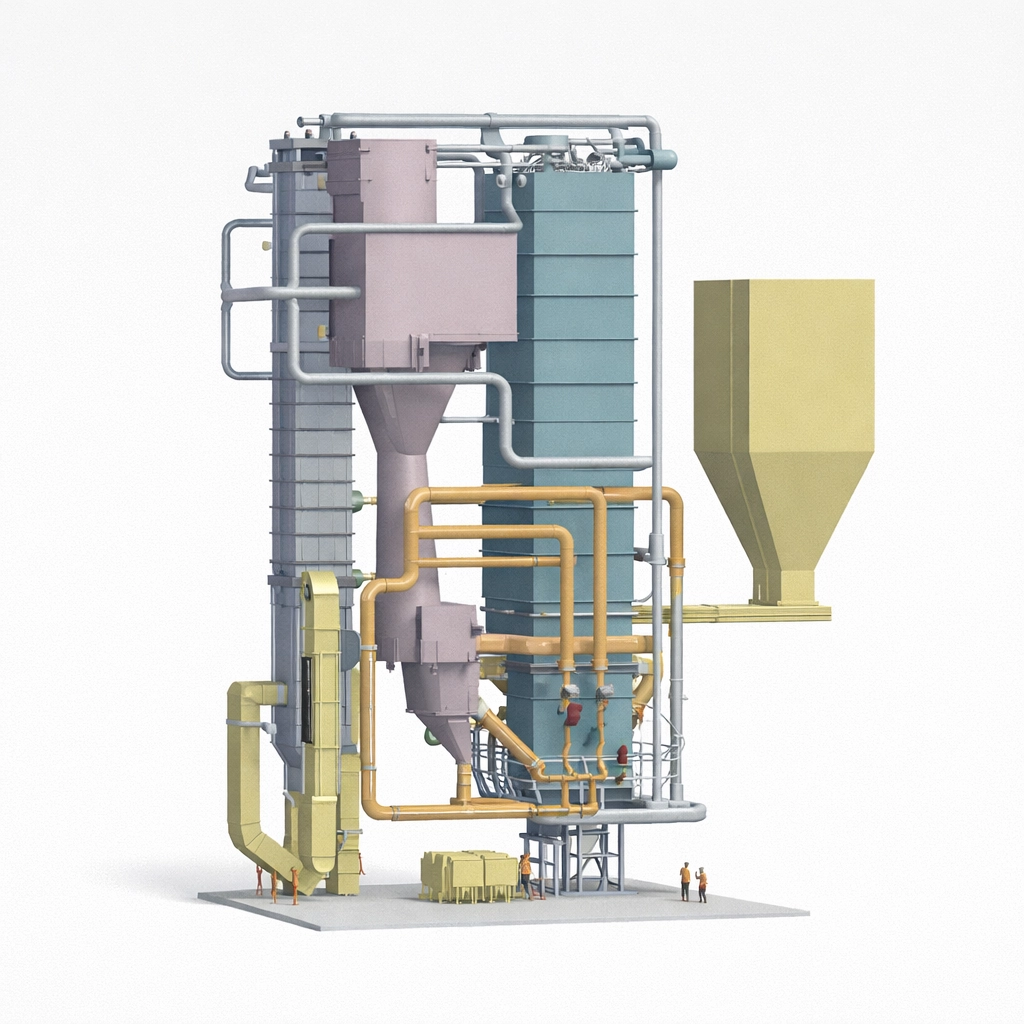

CFB Boiler Systems
Professional manufacturer of Circulating Fluidized Bed boilers for power plants, sugar mills, and industrial facilities. Multi-fuel capability, low emissions, and proven reliability for baseload operation worldwide.
20+
Years Experience
90%
Design Efficiency*
Product Range
CFB Boiler Models & Specifications
Engineered for power generation, cogeneration, and industrial steam applications. Custom designs available for specific fuel types and operating conditions.
Small Scale CFB
- • Biomass & coal co-firing
- • Sugar mill bagasse boilers
- • Industrial waste heat recovery
Medium Scale CFB
- • Municipal solid waste
- • Captive power plants
- • District heating systems
Large Scale CFB
- • Coal-fired power stations
- • Petroleum coke firing
- • Multi-fuel utility boilers
Custom CFB Boiler Design Available
Send us your fuel analysis and steam requirements for a tailored solution.
Manufacturing Excellence
World-Class Production Capabilities
State-of-the-art manufacturing facility in Jiangsu, China with complete fabrication capabilities for pressure parts, vessels, and complete boiler systems.
Years Experience
CFB boiler design and manufacturing
NDT Testing
Complete traceability and documentation
Response Time
Technical support and quotations
EN 10204
Material certificates and compliance
Advanced Manufacturing
Pressure vessel fabrication facility
Quality & Compliance
Factory Tour
See Our CFB Manufacturing Process
Take a virtual tour of our manufacturing facility and witness the precision engineering that goes into every CFB boiler system we produce.
CFB Boiler Manufacturing Process
Watch how we fabricate pressure parts and assemble complete CFB systems
Manufacturing Process Highlights
Material Preparation & Cutting
Certified steel plates cut with CNC plasma and flame cutting systems
Welding & Assembly
Certified welders using automatic and manual welding processes
NDT & Quality Testing
Complete non-destructive testing including RT, UT, PT, and MT
Final Inspection & Packaging
Third-party inspection support and secure packaging for global shipping
Competitive Advantages
Why Choose ORL Power CFB Boilers
20+ years of CFB boiler experience serving power plants, sugar mills, and industrial facilities worldwide. Proven track record of reliable operation and customer satisfaction.
Proven Reliability
Our CFB boilers operate in power plants and industrial facilities across multiple countries with documented availability rates exceeding 95% and stable long-term operation.
- • 20+ years operating experience
- • High availability factor
- • Proven maintenance intervals
Multi-Fuel Flexibility
Engineered to burn a wide range of fuels including coal, biomass, petroleum coke, and waste materials. Fuel switching capability reduces operational risk and improves economics.
- • Coal, lignite, pet coke firing
- • Biomass and waste co-firing
- • Fuel switching capability
Low Emissions
In-furnace desulfurization and low-temperature combustion naturally reduce SO₂ and NOₓ emissions. Meets stringent environmental standards without complex aftertreatment systems.
- • In-furnace limestone injection
- • Low NOₓ combustion
- • Environmental compliance
Engineering Support
Experienced engineering team provides technical support throughout project lifecycle. Fast drawing review, technical clarification, and commissioning assistance.
- • 24-hour technical response
- • Custom design capability
- • Commissioning support
Complete Documentation
Full traceability package including EN 10204 3.1 material certificates, NDT reports, dimensional inspection records, and customized QCP/ITP documentation.
- • EN 10204 3.1 certificates
- • Complete NDT documentation
- • Third-party inspection support
Competitive Pricing
Direct manufacturer pricing with no intermediary markups. Competitive costs combined with proven quality and reliable delivery schedules for your project success.
- • Direct manufacturer pricing
- • No intermediary costs
- • Reliable delivery schedules
Industry Solutions
CFB Boiler Applications Across Industries
Our CFB boilers serve diverse industries worldwide, from utility power generation to specialized industrial processes requiring reliable steam and power generation.
Power Generation
Utility-scale CFB power plants for baseload and peaking operation. Suitable for coal, lignite, petroleum coke, and biomass firing.
- • Coal-fired power stations (50-600 MW)
- • Independent power producers (IPP)
- • Renewable energy with biomass co-firing
- • Grid stabilization and peak load management
Sugar Mills & Cogeneration
Bagasse-fired CFB boilers for sugar mills with cogeneration capability. Process steam for sugar production plus electricity export to grid.
- • Bagasse and biomass firing
- • Cogeneration for process steam and power
- • Grid export during crushing season
- • Coal/biomass blending capability
Industrial Steam & Process
Process steam for manufacturing industries requiring reliable, high-quality steam supply. Captive power generation for energy-intensive operations.
- • Paper and pulp mills
- • Chemical and petrochemical plants
- • Steel and metallurgical industries
- • Textile and food processing
Reference Projects
Coal-Fired Power Plant
135 MWCFB boiler for utility power generation burning local coal with high ash content. Achieved design efficiency and emission targets with stable operation.
Sugar Mill Cogeneration
45 MWBagasse-fired CFB boiler with coal co-firing capability for year-round operation. Supplies process steam and exports electricity to national grid.
Industrial Waste-to-Energy
25 MWMunicipal solid waste and industrial by-products firing with energy recovery. Meets strict emission standards while generating renewable electricity.
Frequently Asked Questions
CFB Boiler Technical FAQ
Common questions from EPC contractors, power plant operators, and industrial end users considering CFB boiler technology for their projects.
What is the typical efficiency of CFB boilers compared to pulverized coal boilers?
Modern CFB boilers can achieve net efficiency up to 90% (LHV basis) when properly designed and operated. Compared to pulverized coal (PC) boilers, CFB technology offers:
- • Similar or higher efficiency: Especially with lower-grade fuels where PC boilers struggle
- • Better part-load efficiency: CFB maintains high efficiency at 50-70% load
- • Lower auxiliary power: No need for coal pulverizers and associated equipment
- • Fuel flexibility advantage: Can burn waste fuels that PC boilers cannot handle economically
Final efficiency depends on fuel properties, steam parameters, and auxiliary equipment selection. We provide detailed efficiency calculations during the proposal stage.
How do CFB boilers handle fuel variations and what is the minimum/maximum fuel quality?
CFB boilers are exceptionally tolerant to fuel quality variations. Typical fuel ranges we can accommodate:
Coal & Solid Fuels:
- • Calorific value: 8-30 MJ/kg
- • Ash content: 5-60%
- • Moisture: up to 45%
- • Sulfur: up to 4%
Biomass & Waste:
- • Bagasse, wood chips, rice husk
- • Municipal solid waste (MSW)
- • Industrial waste and sludge
- • Co-firing ratios up to 100%
The fluidized bed naturally accommodates fuel variations through automatic mixing and temperature control. We design each system based on your specific fuel analysis and expected variations.
What are the maintenance requirements and typical maintenance costs for CFB boilers?
CFB boilers generally have lower maintenance costs than PC boilers due to simpler fuel handling and no pulverizers. Typical maintenance schedule:
Planned Maintenance:
- • Annual shutdown: 2-3 weeks for inspection, refractory repair, tube cleaning
- • Major overhaul: Every 3-4 years (4-6 weeks) for cyclone refractory, water-wall inspection
- • Daily maintenance: Routine inspection, ash removal, water treatment
Key Wear Items:
- • Cyclone separator refractory lining (3-5 year life)
- • Lower furnace refractory and cladding (2-4 year life)
- • Distributor plates and nozzles (5-8 year life)
- • Bed material replenishment (continuous, low cost)
Maintenance costs are typically 15-25% lower than PC boilers. We provide detailed maintenance manuals, spare parts recommendations, and training for your maintenance team.
How do you achieve SO₂ and NOₓ emission control in CFB boilers?
CFB technology inherently produces lower emissions than conventional combustion systems. Our emission control approach:
SO₂ Control:
- • In-furnace desulfurization: Limestone injection directly into the bed
- • Capture efficiency: 85-95% SO₂ removal achievable
- • Ca/S ratio: Typically 2.0-3.0 for high sulfur coals
- • No wet FGD required: Reduces capital and operating costs
NOₓ Control:
- • Low combustion temperature: 850-900°C reduces thermal NOₓ
- • Staged combustion: Primary/secondary air distribution optimization
- • SNCR option: Urea/ammonia injection for ultra-low NOₓ
- • Typical emissions: <200 mg/Nm³ without SNCR, <100 mg/Nm³ with SNCR
Emission guarantees are provided based on fuel analysis and local regulatory requirements. We can meet EU, US EPA, and other international emission standards.
What is the typical delivery time and project timeline for CFB boiler supply?
Project timeline depends on boiler size, scope of supply, and technical complexity. Typical schedules:
Engineering & Manufacturing:
- • Small CFB (6-35 t/h): 8-12 months from contract
- • Medium CFB (35-130 t/h): 12-16 months from contract
- • Large CFB (130+ t/h): 16-24 months from contract
- • Detailed engineering: 2-3 months for drawings and calculations
Project Milestones:
- • Contract signature to detailed drawings: 8-12 weeks
- • Manufacturing start to first shipment: 6-8 months
- • Site erection and commissioning: 3-6 months
- • Performance testing and acceptance: 1-2 months
We work closely with EPC contractors to optimize delivery schedules and coordinate with civil works. Expedited delivery options available for urgent projects with premium pricing.
What technical support and services do you provide during commissioning and operation?
Comprehensive technical support ensures successful project commissioning and long-term operation:
Commissioning Support:
- • Site supervision by experienced CFB engineers
- • Hydrostatic testing and pre-commissioning inspection
- • Cold and hot commissioning procedures
- • Performance testing and optimization
- • Operator training and knowledge transfer
Ongoing Support:
- • 24/7 technical hotline for urgent issues
- • Remote monitoring and diagnostic support
- • Annual inspection and maintenance planning
- • Spare parts supply and logistics support
- • Performance optimization and upgrade services
Standard warranty is 12 months from commissioning or 18 months from shipment. Extended warranty and service agreements available for long-term partnership.
Have more specific questions about CFB boiler technology?
Ask Our EngineersGet Your CFB Boiler Proposal
Share your project requirements and receive a comprehensive CFB boiler proposal with technical specifications, performance guarantees, and competitive pricing within 24 hours.
What Information We Need
- Steam Requirements: Capacity (t/h), pressure (MPa), temperature (°C)
- Fuel Information: Type, analysis (proximate/ultimate), availability
- Site Conditions: Location, elevation, ambient conditions
- Emission Limits: Local environmental regulations
- Project Timeline: Expected commissioning date
Direct Contact Options
Why Choose ORL Power CFB Boilers?
- ✓ 20+ years CFB boiler manufacturing experience
- ✓ ASME/EN/GB code compliance and certification
- ✓ Proven reliability in power plants worldwide
- ✓ Complete technical support and documentation
- ✓ Competitive pricing with reliable delivery
